Modern prefab house luxury homes custom insulated galvanised light steel frame house villa
Important Points For You:
-
Product Orgin:HeBei China
-
Shipping Port:Tianjin
-
Payment:TT / Western Union / LC
-
Color:OPTIONAL
Product Advantages:
- Thermal insulation,anti-seismic and wind resistance;
- Energy conservation and environmental protection;
- Energy saving:enery consumption reduced by 60%-90%;
- Water-saving:dry construction work,water consumption reduced by 90%;
- Material-saving:90% recyclable building materials;
- Environmental protection:circulation,pollution-free building system;
- Durable,roofing load-bearing and fireproofing;
- Sound insulation,moisture proof ventilation.
1
steel frame
Cold-formed thin-walled steel structural systems
2
exterior wall
normal wall
One layer of cement glass magnesium board, density ≥ 1.2g/m³, flame retardant grade A, thickness 18mm, middle 10cm polyurethane foam insulation, middle C-shaped steel rear wall keel, exterior wall decoration is the same as the YIMU company's main factory office building with real stone Paint, the color is the same as the rendering
3
roof
common roof
Double slope resin tile roof (gray), 3mm SBS waterproof + 15mm OSB board + galvanized steel studs / 50mm polyurethane insulation board + 9mm OSB board
4
interior wall
normal wall
12mm thick OSB board + 10cm polyurethane foam insulation in the middle, C-shaped steel rear wall keel in the middle + 12mm thick OSB board
5
ceiling
living room and bedroom
12mm thick OSB board
6
kitchen and toilet
12mm thick OSB board
7
house base
H steel
8
Material
Provide toilet floor tiles and UV panels for toilet walls
| 1 | steel frame | Cold-formed thin-walled steel structural systems | |
| 2 | exterior wall | normal wall | One layer of cement glass magnesium board, density ≥ 1.2g/m³, flame retardant grade A, thickness 18mm, middle 10cm polyurethane foam insulation, middle C-shaped steel rear wall keel, exterior wall decoration is the same as the YIMU company's main factory office building with real stone Paint, the color is the same as the rendering |
| 3 | roof | common roof | Double slope resin tile roof (gray), 3mm SBS waterproof + 15mm OSB board + galvanized steel studs / 50mm polyurethane insulation board + 9mm OSB board |
| 4 | interior wall | normal wall | 12mm thick OSB board + 10cm polyurethane foam insulation in the middle, C-shaped steel rear wall keel in the middle + 12mm thick OSB board |
| 5 | ceiling | living room and bedroom | 12mm thick OSB board |
| 6 | kitchen and toilet | 12mm thick OSB board | |
| 7 | house base | H steel | |
| 8 | Material | Provide toilet floor tiles and UV panels for toilet walls | |
Yimu's Light Steel Villa

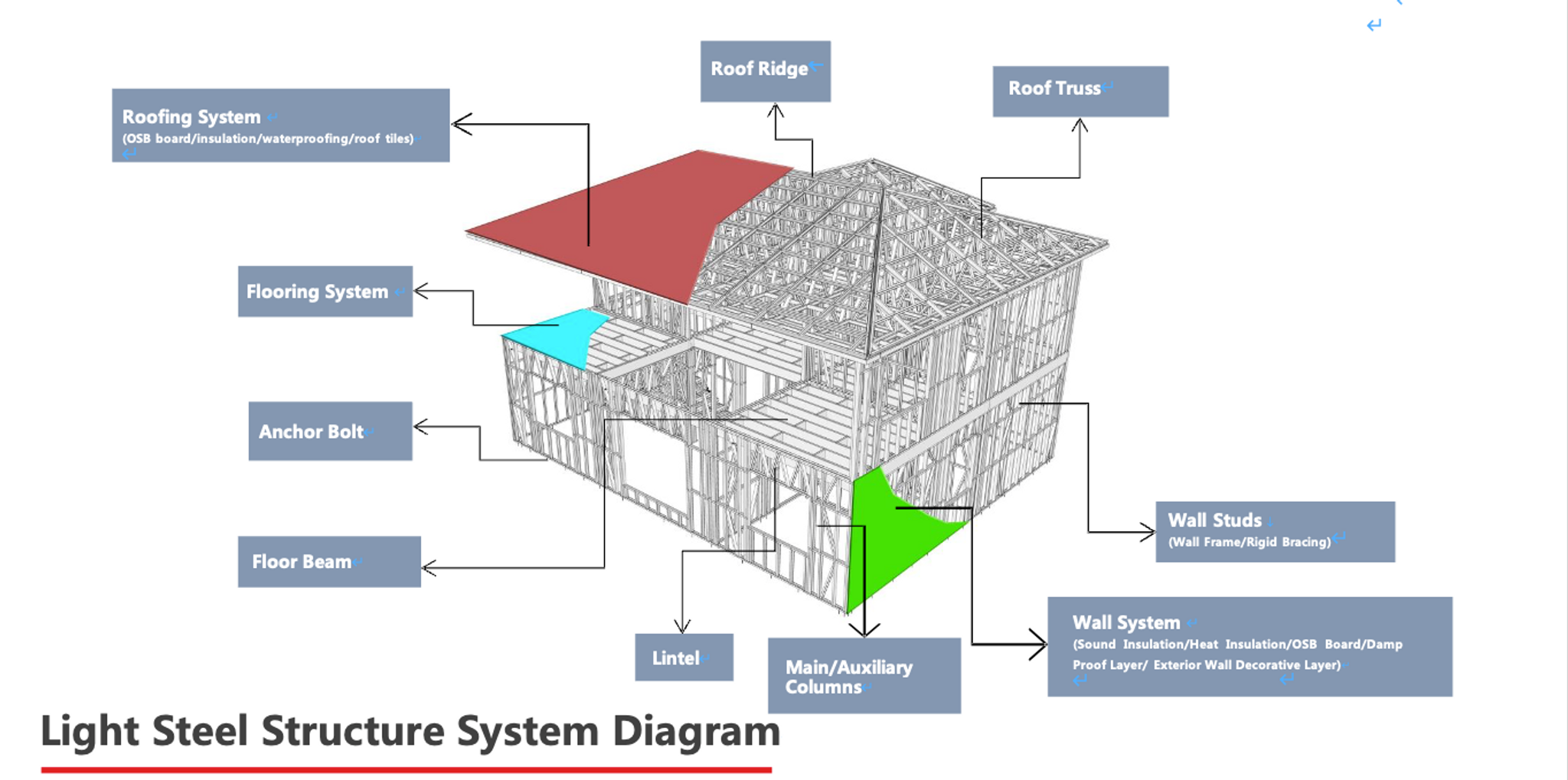

Luxury decoration and various types, it’s been more and more popular of middle & high standard market. It’s a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, other components such as windows and doors, can be chosen by the customers.
Yimu House is committed to pushing the boundaries of modern living solutions by offering a diverse range of innovative housing options. Our light steel villas are the perfect blend of style, functionality, and durability, designed to cater to the needs of those seeking an upscale, contemporary, and environmentally friendly residence.
Luxury decoration and various types, it’s been more and more popular of middle & high standard market. It’s a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, other components such as windows and doors, can be chosen by the customers.
Yimu House is committed to pushing the boundaries of modern living solutions by offering a diverse range of innovative housing options. Our light steel villas are the perfect blend of style, functionality, and durability, designed to cater to the needs of those seeking an upscale, contemporary, and environmentally friendly residence.
